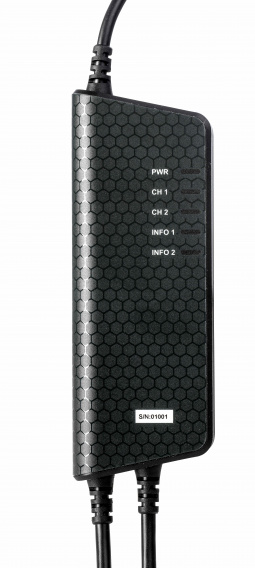

Kvaser Hybrid 2xCAN/LIN

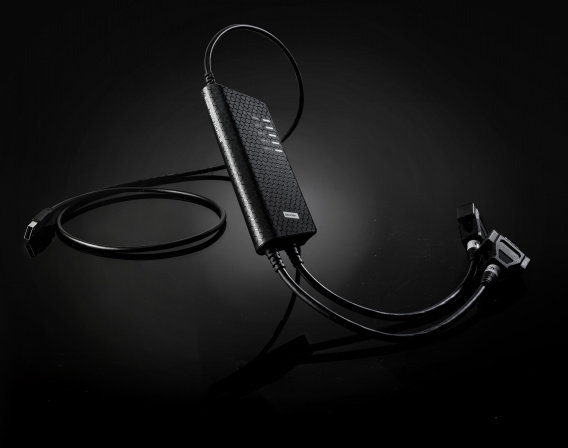

Kvaser Hybrid 2xCAN/LIN - Image 2
Kvaser Hybrid 2xCAN/LIN - Image 3

Kvaser Hybrid 2xCAN/LIN

00965-3

£590.00 Plus VAT

Kvaser Hybrid 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN. This makes the Kvaser Hybrid 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.

Data Sheet



SKU: 00965-3 Categories: , , ,

Description

Tech Specs
Bit Rate (kbps)50 – 1000 kbps

Height20 mm

Length170 mm

Width50 mm

Weight160 g

Messages Per Second Receive20000 mps

Messages Per Second Sending20000 mps

ConnectorsDSUB 9

Interfaces PCUSB

CAN FD Bitrate5 Mbit/s

Timestamp Resolution (µs)50 µs

Error Counters ReadingNo

Error Frame GenerationNo

Galvanic IsolationYes

Silent ModeNo

Regulatory ComplianceCE, FCC

Operating SystemWindows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux

Temp range-40 °C to 85 °C

t scriptNo

CategoriesLIN, Interfaces, Hardware, CAN

Channels2

Lin Bitrate1-20 kbit/s
